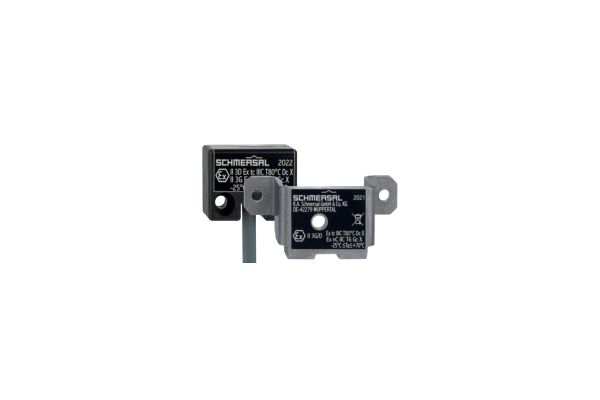

Explosion protection for ATEX Zones 2 and 22
Thermoplastic enclosure
Insensitive to transverse misalignment
no mechanical wear
64 mm x 29.5 mm x 15.5 mm (incl. protective enclosure)

SKU

4030661565095
Manufacturer code

103045521
Explosion protection parameters, designation

D II 3D Ex tc IIIC T80°C Dc X
D II 3G Ex nC IIC T6 Gc X
Housing material

Glass-fibre, reinforced thermoplastic
PIM maintenance status

Technische Produktdaten vollständig für Ausleitung
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661565095
SAP, product group

Initial
SAP, gross weight

680.000 g
SAP, net weight

680.000 g
Web Type

Product range
Selection (Yes/No), Traceparts

Yes
Current, Switching current, maximum

0.1 A
Actuating element

Magnet
Type of Execution, Housing construction form

Block
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
Diameter, Wire cross-section, AWG

23 AWG
Diameter, Wire cross-section,

0.25 mm<sup>2</sup>
Length, Cable

20 m
Length, Sensor

13 mm
Area, ensured switch distance OFF S_ar

14 mm
Area, ensured switch distance ON S_ao

4 mm
Energy, Impact energy, maximum

7 J
Explosion protection, Manufacturer's declaration

ATEX Zone 2 and 22
Explosion protection parameters, category

3D
3G
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN IEC 60079-15
Explosion protection parameters, zones

22
2
Material, cable mantle

PVC
Motion, Direction of motion

Head-on to the active surface
Note, General

Contact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i
Number, NC contacts

1
Number, NO contacts

1
Number, cable wires, indication with cable cross-section, electrical

4
Power, switching capacity, maximum

1 W
Recommendation, actuator

EX-BPS 250-3G/D
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
Type of electrical connection

Cable
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Voltage, Switching voltage, VDC, maximum

24 VDC
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Short circuit detection

Yes
Type of Execution, Switching output, Digital output, electric

Miscellaneous, Reed contacts
Number, cable wires, electrical

4
Selection (Yes/No), Coding

Yes
Height, Sensor

25 mm
Width, Sensor

33 mm
Review, selection (yes/no), Prerequisite evaluation unit

Yes
Selection (Yes/No), CADENAS

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
