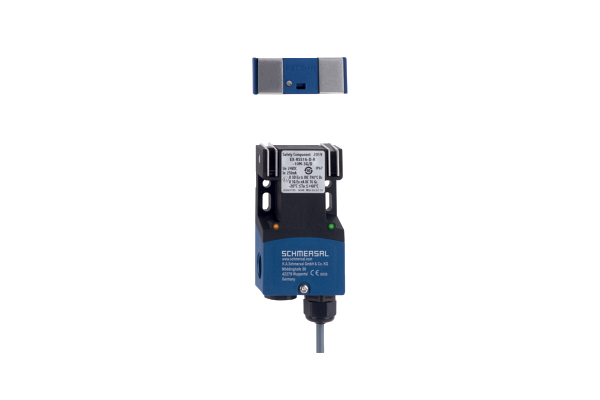

Door stop with magnetic latching
Explosion protection for ATEX Zones 2 and 22
Thermoplastic enclosure
RFID-technology for needs-based protection against tampering
3 different directions of actuation

SKU

4030661530581
Manufacturer code

103027193
Explosion protection parameters, designation

D II 3D Ex tc IIIC T90°C Dc X
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661530581
SAP, product group

Initial
SAP, gross weight

250.000 g
SAP, net weight

200.000 g
Web Type

Product range
Selection (Yes/No), Traceparts

Yes
Type of Execution, Active area

front side
lateral
cover-side
Type of Execution, Housing construction form

Block
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
IP65
Length, Cable

10 m
Length, Sensor

91 mm
Area, ensured switch distance OFF S_ar

30 mm
Area, ensured switch distance ON S_ao

5 mm
Explosion protection parameters, category

3D
3G
Explosion protection, regulations

EN IEC 60079-0
EN 60079-31
EN 60079-7
Explosion protection parameters, zones

22
2
Standard, standards

EN IEC 60947-5-3
Recommendation, actuator

RST16-1-R
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
PROTECT PSC1
SRB200EXi
SRB101EXi
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
EN IEC 61508
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

1 Hz
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Short circuit detection

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Current, Residual current, Fail-safe output, maximum

0.5 mA
Current, Rated operating current

2100 mA
Current, Utilisation category DC-12, Diagnostic output

0.05 A
Current, Utilisation category DC-12, Fail-safe digital output

1 A
Current, Utilisation category DC-13, Diagnostic output

0.05 A
Current, Utilisation category DC-13, Fail-safe digital output

0.05 A
Type of Execution, for degree of pollution VDE 0100

3
Type of Execution, Overvoltage category VDE 0100

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of execution, sensor, topology

Sensor for series wiring
Type of execution, switching output, fail-safe output, electric

p-type
Distance, Hysteresis, Mechanical, maximum

2 mm
Distance, Repeat accuracy R _R

0.5 mm
Range, switch distance S, typical

15 mm
Elektrische Daten, Absicherung des Sicherheitsausganges, Allgemein

short-circuit proof, p-type
Electrical data, Utilisation category DC-12, Diagnostic output [generated product variant]

24 VDC / 0.05 A
Material, active area

Glass-fibre, reinforced thermoplastic
Note, LED switching conditions display

LED green: Supply voltage
LED red: Fault
LED yellow: Operating condition
Multi-coloured LED: Green, Red
Number, Semi-conductor outputs with signaling function

1
Number, fail-safe digital outputs

2
PNV, standard, certificates

TÜV
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Performance Level,

e
Safety values, PFD value

0.000000000063 /h
Safety parameters, Safety Integrity Level (SIL)

3
Time, Duration of risk, maximum

200 ms
Time, Reaction, maximum

100 ms
Tolerance, operating voltage, DC, maximum

10 %
Tolerance, operating voltage, DC, minimum

-15 %
Voltage, voltage drop Ud, maximum

1 V
Voltage, Rated impulse withstand voltage

0.8 kV
Voltage, rated insulation voltage

32 VDC
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Voltage, Utilisation category DC-12, Diagnostic output

24 VDC
Voltage, Utilisation category DC-12, Fail-safe digital output

24 VDC
Voltage, Utilisation category DC-13, Diagnostic output

24 VDC
Voltage, Utilisation category DC-13, Fail-safe digital output

24 VDC
Selection (Yes/No), Safety functions

Yes
Standard, Manufacturer's declaration

ATEX Zone 2 and 22
Current, Required rated short-circuit current to EN 60947-5-1

100 A
Height, Sensor

30 mm
Width, Sensor

52 mm
Type of application, Actuating panel

front side
rear
from head
Type of application, Relative humidity, maximum

93 %
Coding, Coding level according to EN ISO 14119

Low
Coding, general information

Universal coding
Current, consumption, Safety inputs

5 mA
Current, Operating current, minimum

0.5 mA
Current, Rated operating current, diagnostic output

50 mA
Current, Rated operating current, Safe digital outputs

1000 mA
Current, output current, fail-safe output, maximum

1 A
Type of execution, mounting

2 x M5, Cylinder head screw
Type of execution, switching output, diagnostic output, electric

p-type
Height, permissible installation height above sea level, maximum

2000 m
Elektrische Daten, Absicherung des Diagnoseausganges, Allgemein

short-circuit proof, p-type
Standard, EMC rating

IEC 60947-3
Standard, interfering radiation

IEC 61000-6-4
Notes, length, sensor chain

Cable length and cross-section change the voltage drop depen
Note, Relative humidity

non-condensing
non-icing
Note, series connection, sensors

Unlimited number of devices, oberserve external line fusing,
Number, LED's

2
Safety values, PFD value

0.000015
Time, Time to readiness, maximum

2000 ms
Torque, tightening torque, screw, mounting

2 Nm
Voltage, rated operating voltage, maximum

26.4 VDC
Voltage, rated operating voltage, minimum

20.4 VDC
Selection (yes/no), cascadable

Yes
Selection (Yes/No), Diagnostic output

Yes
Selection (Yes/No), Latching magnet

Yes
Selection (Yes/No), Series-wiring

Yes
