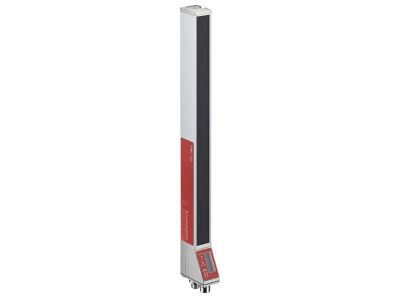

CML730i-T05-720.A-M12 CML730i-T05-720.A-M12

CML730i-T05-720.A-M12

Special version: Diagonal-beam scanning, Crossed-beam scanning, Parallel-beam scanning; Operating range: 0.1 ... 4 m; Measurement field length: 720 mm; Beam spacing: 5 mm; Supply voltage: 18 ... 30 V, DC; Cycle time: 1.64 ms; Connection: Connector, M12, Axial, 5 -pin; Dimensions: 29 mm x 35.4 mm x 795 mm

  • SKU
    2110-50118584
  • Manufacturer code
    50118584
  • Scope of delivery of the one-way system
    Transmitter
  • Type of electric connection
    Connector M12
  • Width sensor
    29 mm
  • Height of sensor
    35.4 mm
  • Length of sensor
    795 mm
  • Ambient temperature
    -30 - 60 °C
  • Suitable for safety functions
    NO
  • Degree of protection (IP)
    IP65
  • Wavelength of the sensor
    940 nm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Operation agent-safety class
    Safety class 3
  • Voltage type
    DC
  • With restart blockage
    NO
  • With monitoring function downstream switching devices
    NO
  • Cascadable
    NO
  • Fade-out possible
    NO
  • Detection power for test bodies
    10 mm
  • With muting function
    NO
  • Override possible
    NO
  • Reduced resolution
    NO
  • With beam coding
    YES
  • Type of switching output of the OSSD
    Other
  • Transmission range of the safety field
    4 m
  • Rated control supply voltage Us at DC
    18 - 30 V
  • Resolution of the light curtain
    5 mm
  • Safety field height
    720 mm
  • Degree of protection (NEMA)
    Other
  • Manufacturer Leuze
