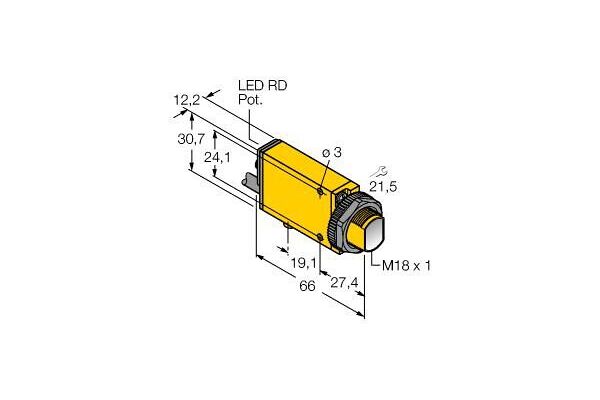

MI9E Photoelectric Sensor, Opposed Mode Sensor (Emitter)

MI9E

Photoelectric Sensor, Opposed Mode Sensor (Emitter), Operating voltage 5…15 VDC, Max. range 6000 mm, Cable length 2 m, Cable, PVC, 2 m, Protection class IP67, Operating voltage: 5…15 VDC (NAMUR), ATEX category II 1 G, Ex zone 0

  • SKU
    0662488401412
  • Manufacturer code
    3040141
  • Setting procedure
    Other
  • Type of electric connection
    Cable
  • Construction type housing
    Cuboid
  • Width sensor
    12.3 mm
  • Height of sensor
    30.7 mm
  • Length of sensor
    66 mm
  • Material of optical surface
    Plastic
  • Ambient temperature
    -40 - 70 °C
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP67
  • Rated switching distance
    6000 mm
  • Max. switching distance
    6000 mm
  • Wavelength of the sensor
    880 nm
  • Type of light
    Infrared light
  • Diameter sensor
    18 mm
  • Material of cable sheath
    Polyvinyl chloride (PVC)
  • Housing material
    Plastic
  • Atex category
    ATEX category II 1 G
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-43228-295a7d7aa506297bc7b20a6a42eea7ff.pdf (PDF, 663.08 kB)
